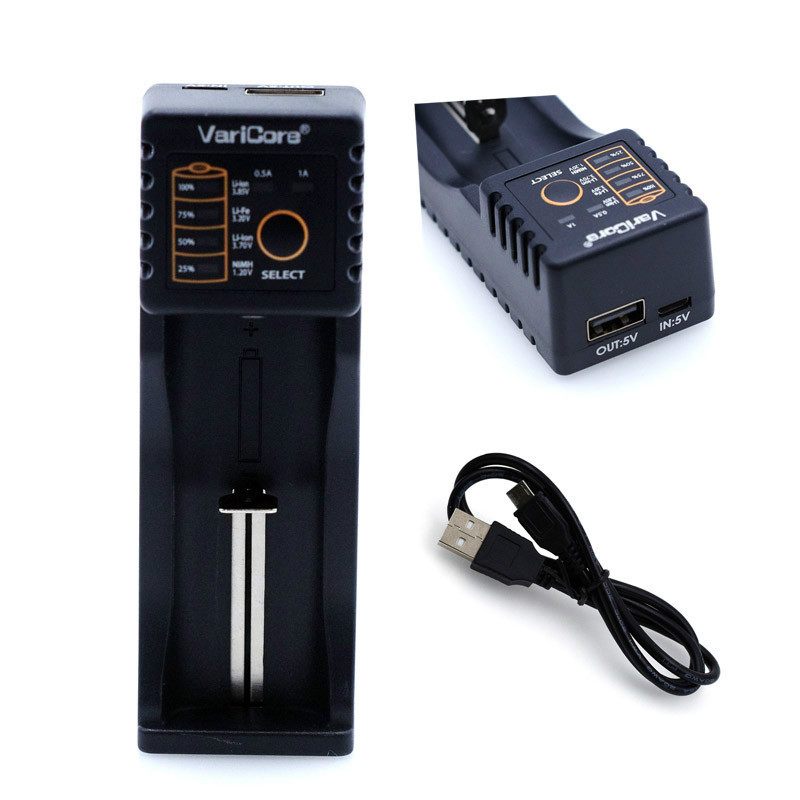

V10 18650 universal charger

Product details

26650, 22650, 26500, 18650, 18490, 18350, 17670, 17500, 17355, 16340,14500, 10440 etc. AA / AAA / A / SC / S Specific parameters. Rechargeable battery type. Supported batteries. Supports 3.7V Li-ion / 3.8V Li-ion / 3.2V Li-Fe / 1.2V NiHM USB 5V boost output. USB 5V is only used as a 3.7V / 3.8V lithium battery boost output, and the output current is 1000mAh (NiMH battery is invalid). USB 5V has no effect when the charger is connected to the adapter. The. USB 5V output of. V10 is suitable for most mobile electronic devices on the market, but not all products have been tested, so it is not excluded that some 5V electronic products are not applicable. Button and. LED description. Instructions for use. Put the battery into the charger in the correct direction and then connect the power. At this time, you can choose the charging type. If you don't choose the charger, it will be charged by default. During the charging process, press and hold the button at any time to change the charging current. When using, the charger intelligently recognizes 1.2V@NiHM and 3.7V@Li-ion batteries. If it is confirmed that the battery is a 3.2V@Li-Fe battery or a 3.8V@Li-ion battery, please select the corresponding battery type for charging. Precautions. Please select the correct battery type for charging. Before using, please refer to the manual carefully and operate the charger correctly. Use a 5V / 1A adapter.

Material

plastic

DC input voltage

5V-1A

Battery charging current

500mA / 1000mA

USB output

5 ± 0.2V-1000mA

Termination method

Intelligent voltage monitoring

Dimensions

113mm (length) * 38mm (width) * 29mm (height).

Lithium batteries

26650, 22650, 26500, 18650, 18490, 18350, 17670, 17500, 17355, 16340, 14500, 10440, etc.

Ni-MH batteries

AAA / AA / A / SC / S, etc.

Warning

Please select the correct charging mode to charge your battery.

SELECT

Press and hold the button to switch between "0.5A and 1A" charging current. Press the button at the beginning to select the battery charging type. Press the button during charging to view the battery charging type.

NiMH 1.2V

suitable for 1.2V NiHM rechargeable battery, full charge voltage is 1.42V-1.55V (depending on battery performance)

Li-ion 3.7V

is suitable for 3.7V Li-ion rechargeable battery, the full charge voltage is 4.25V.

Li-Fe 3.2V

Suitable for 3.2V Li-Fe rechargeable batteries, with a fully charged voltage of 3.65V.

Li-ion 3.85V

is suitable for 3.8V Li-ion rechargeable battery, the full charge voltage is 4.35V.

25% / 50% / 75% / 100%

indicates the battery level.

Weight

100 g
