- Material
- plastic, metal
- Product model
- ITX-HM86
- Structural standard

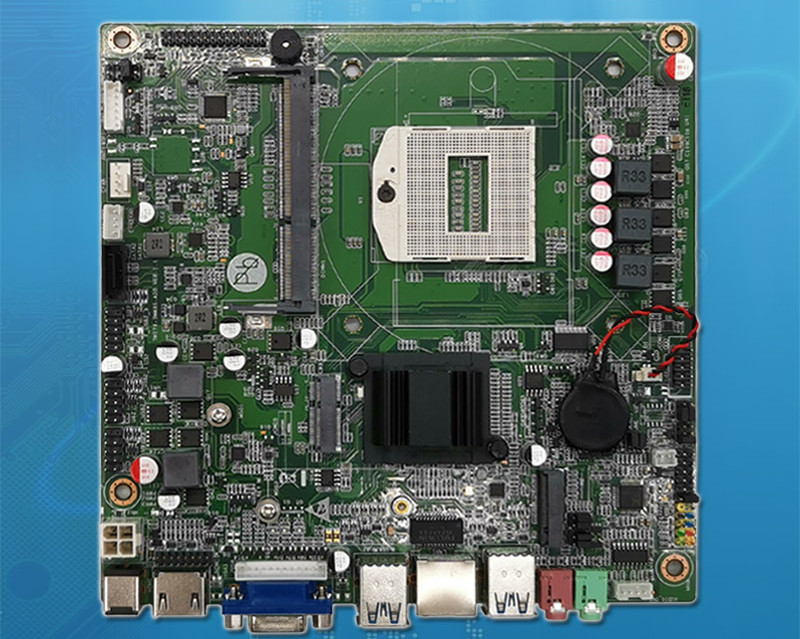

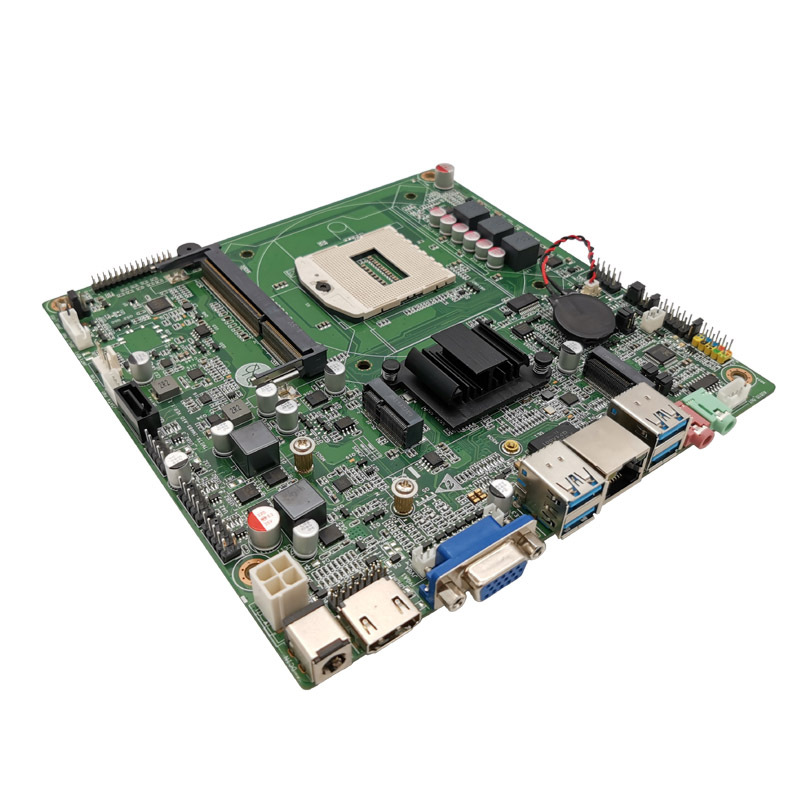

- Standard Thin Mini-ITX motherboard
- Processor
- Support Intel 4th generation 13/15/17 processor processor
- Chipset
- INTEL HM86
- Memory
- 1 single channel. SO-DIMM memory slot, support DDR3L 1333/1600, up to 8GB
- Display
- CPU integrated core graphics
- Detail
- 1*VGA, 1*HDMI, (support 4K/30Hz HD display) 1*LVDS interface (support dual channel 24BIT)
- Detail
- Support VGA, HDMI, LVDS synchronous three displays
- Network
- 1*RJ45 interface, using Realtek network chip, support Wake-on-LAN (WOL) /PXE
- Adaptive rate
- 10/100/1000Mbps
- Storage
- 1*SATA2.0 hard disk interface, 1*M.2 socket
- Audio
- Use RealtekHD audio control chip, support MIC/Line-out, power amplifier
- Detail
- The power amplifier supports 2 3W 4 ohm/5W 2 ohm speakers
- Expansion
- 1*M.2 slot, support WIFI

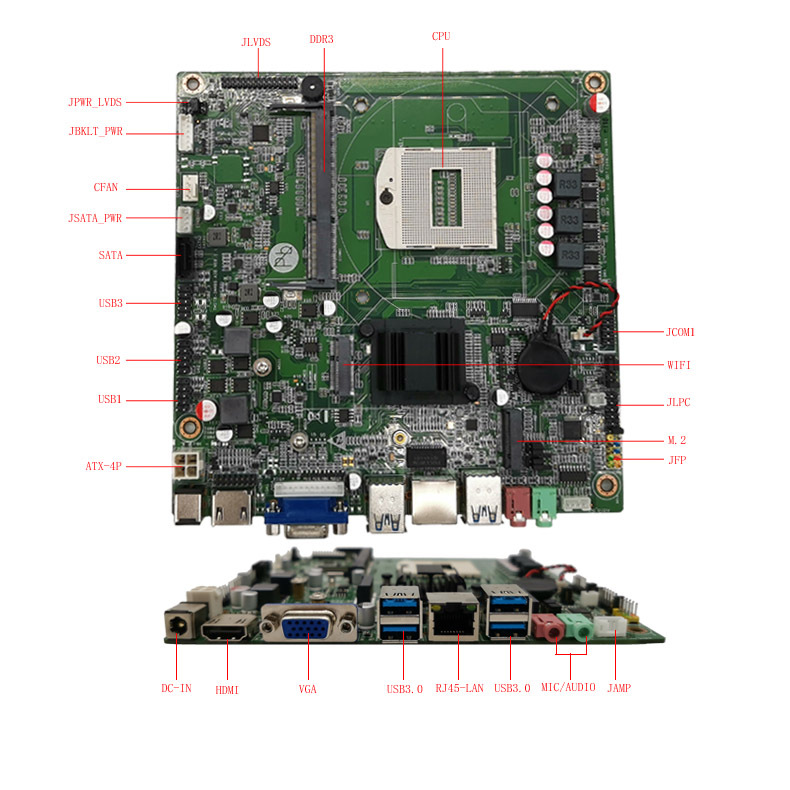

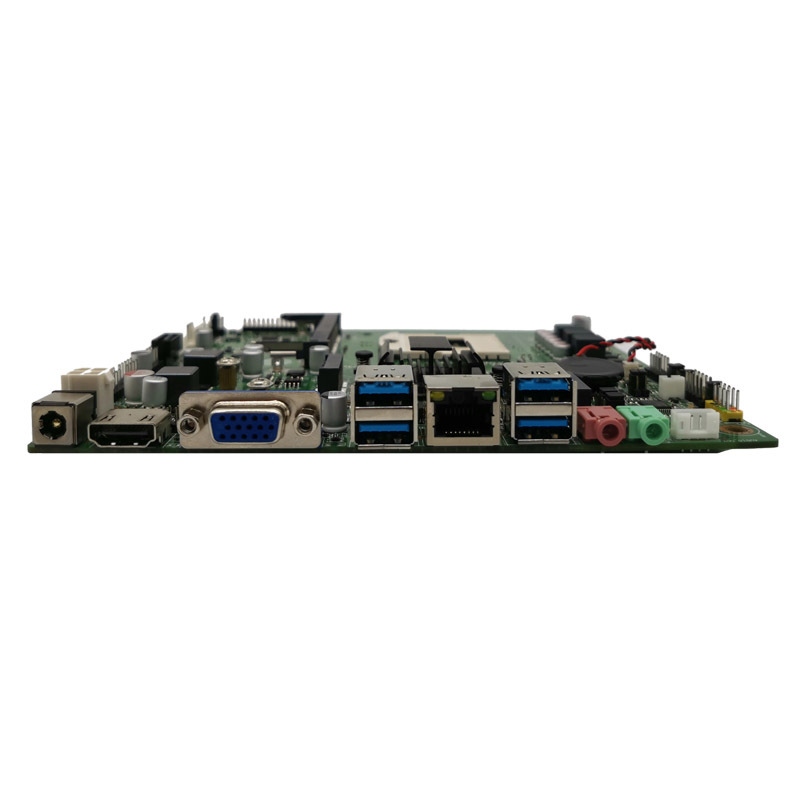

- Backplane 1/0 interface
- 1*VGAI display interface
- Detail
- 1*HDMI display interface
- Detail
- 4*USB3.0 interface
- Detail
- 1*RJ-45 Gigabit network interface
- Detail
- 1*LINEOUT interface (green), 1*MIC interface (red)
- Detail
- 1*12V DC power input interface
- Built-in 1/0 interface
- 1*4PINATX power interface (12V input and output power interface can be used)
- Detail
- 4*USB2.0 interface 2*5PIN
- Detail
- 1*J_ HDMI interface 2*8PIN (the same signal as the HMID of the backplane 10 interface)
- Detail
- 1*J_ VGA interface 1*12PIN (same signal with DB15)
- Detail
- 1*R232 serial port (2 optional)
- Detail
- 1*Front audio interface 2*5PIN
- Detail
- 1*Front panel switch reset button and indicator light interface 2*5PIN
- Detail
- 1*LVDS interface 2*15PIN, support dual channel 24BIT (dual 8-bit)
- Detail
- 1*LVDS backlight power supply interface 1*6PIN
- Detail
- 1*hard disk power supply interface 1*4PIN
- Detail
- 1*Amplifier interface 1*PING
- Fan interface
- 1*4PIN CPU fan interface
- BIOS
- 8MB SPI BIOS
- Watchdog
- Support hardware reset function
- Operating system
- WINDOWS 7/WINDOWS 10/LINUX
- Power supply type
- DC12V/19V power supply
- Working temperature
- -15C~60°C
- Storage temperature
- -40"C~85"C
- Working humidity
- 5%~95%, no condensation
- Size
- 170mmX 170mm (length X width)
- Weight
- 500 g
