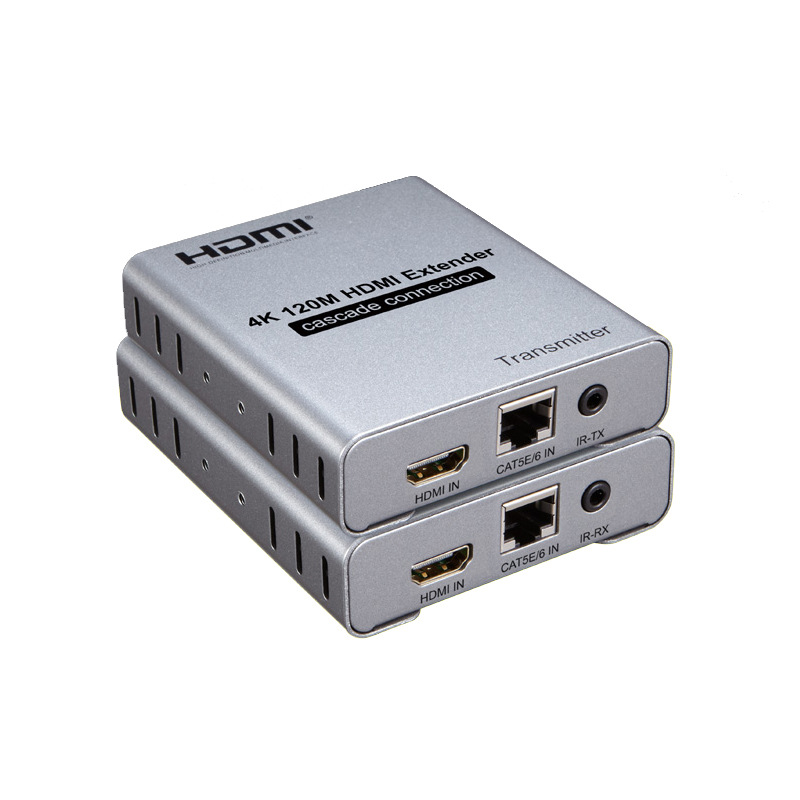

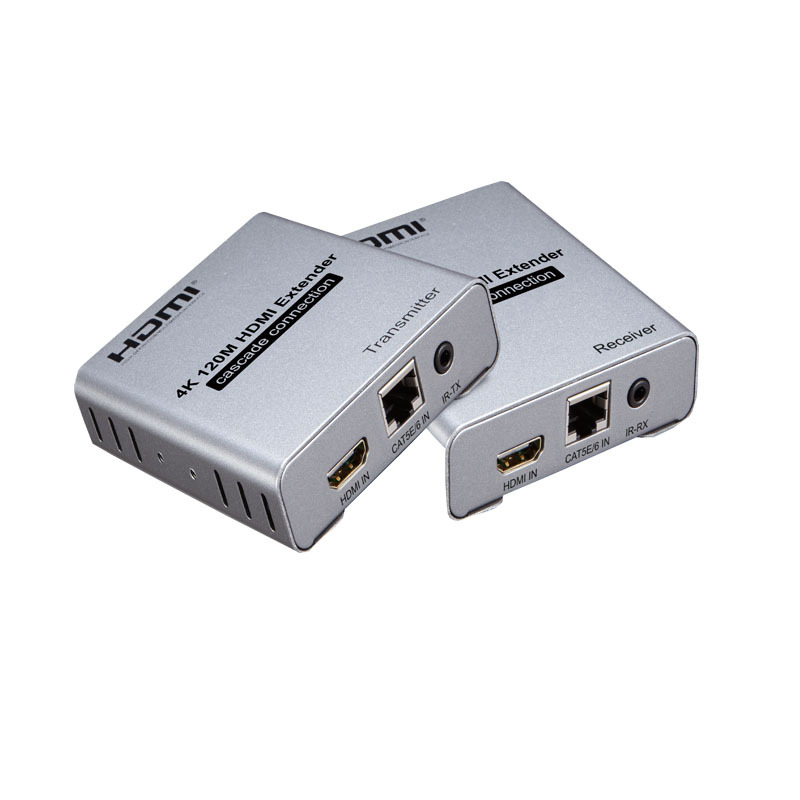

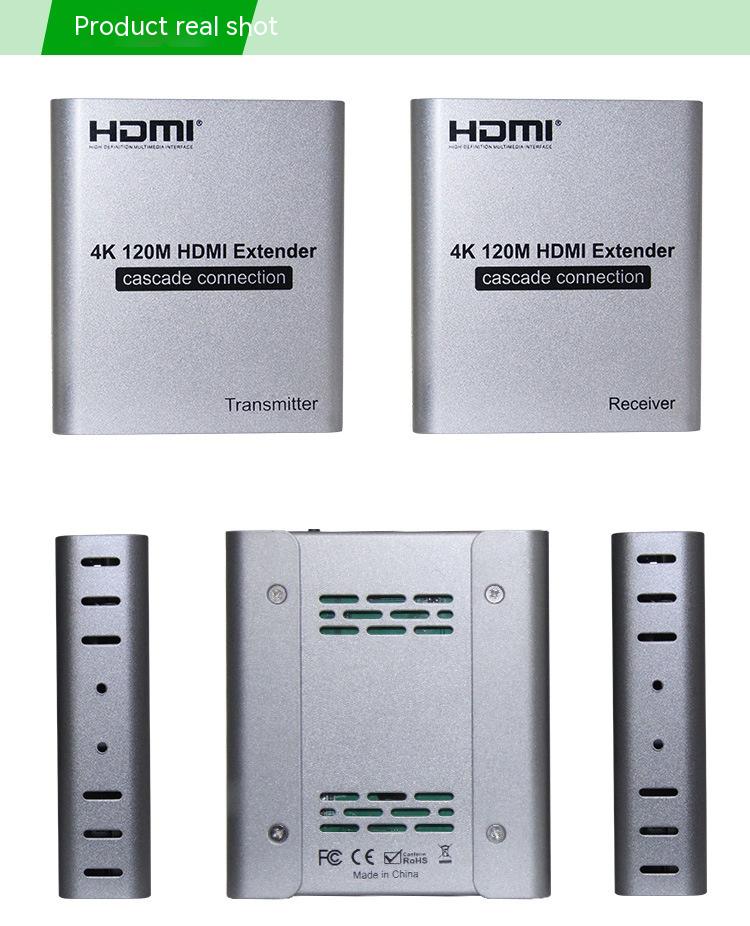

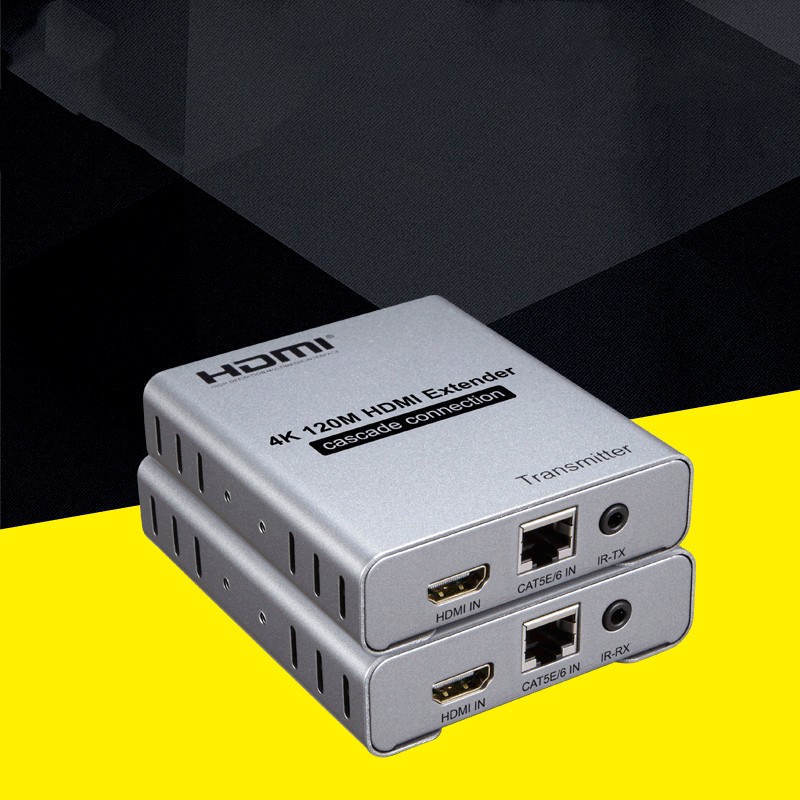

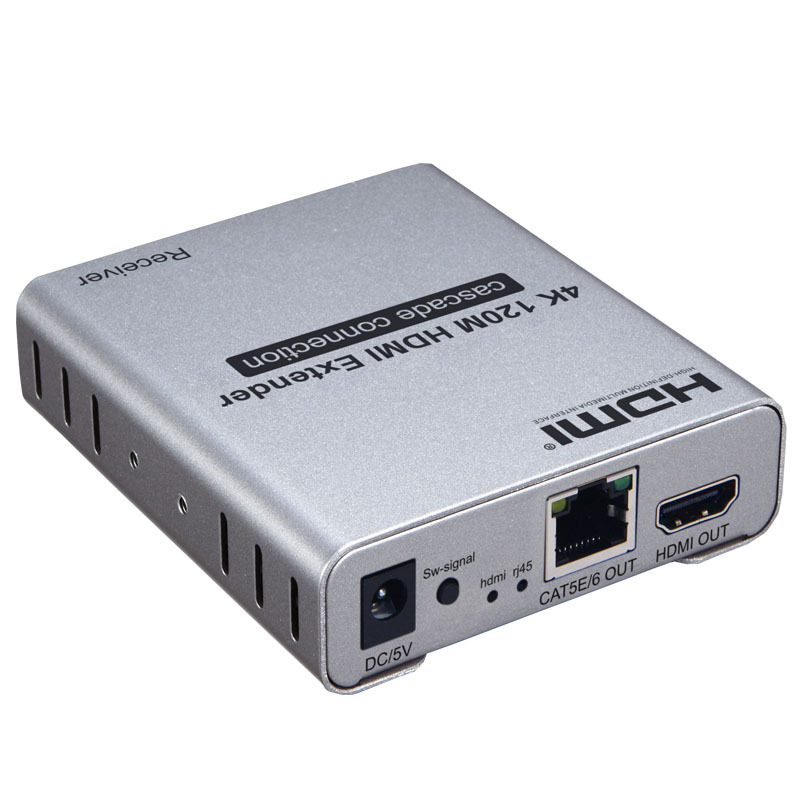

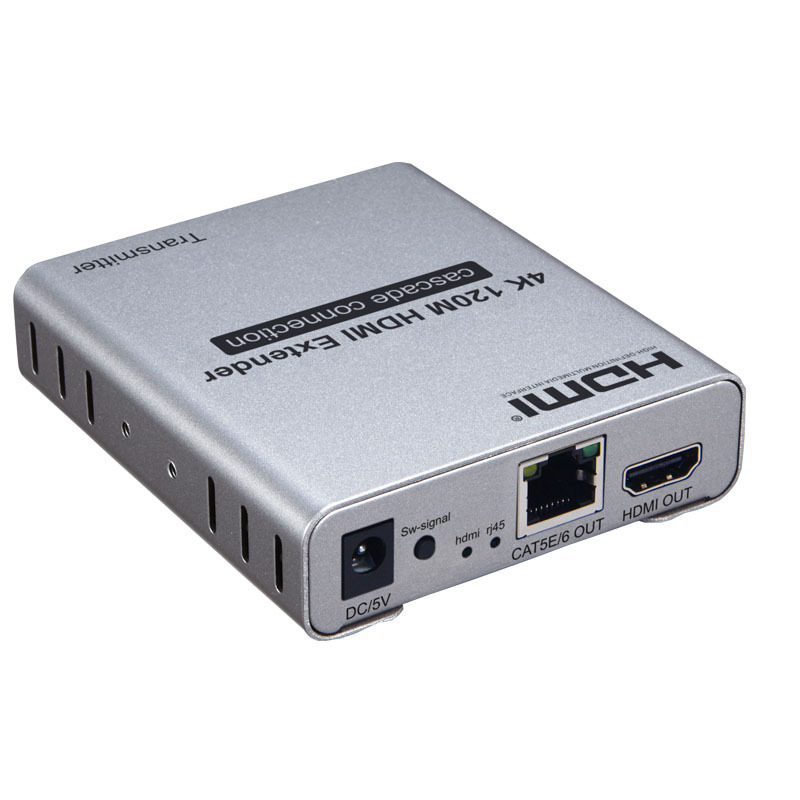

Name: HDMI Extender High List Network Cable Cascade Signal Amplifier
Brand: TajBee
SKU: CJYD1776075

Spring Japanese Style Retro Round Toe Casual Shoes Women's Thick Soled Student Mary Jane Shoes Mori Girl Platform Shoes One Piece Dropshipping

87% off

Sports & Outdoors

Spring Japanese Style Retro Round Toe Casual Shoes Women's Thick Soled Student Mary Jane Shoes Mori Girl Platform Shoes One Piece Dropshipping

New

₹581₹4,557

5 options

Select options

Product details

Material

Metal

Color

4K 120m (Cascade)

Processing Method

OEM

Interface

transmitting and receiving IR line configuration: US standard power supply, transmitting and receiving IR line configuration: European power supply, transmitting and receiving IR line configuration: BS power supply, transmitting and receiving red line: (without power supply, you need to bring your own 5V)

Resolution

Purpose

Safety Monitoring line

Line length

can transmit 120

How to connect

A. Use an HDMI cable to connect the signal source to the transmitter of extender, and the cable is 15 meters long;

Detail

B. Use an HDMI cable to connect the signal end to the receiving end of extender, and the cable is up to 15 meters long;

Detail

C. Use a cat5e cable or cat6 cable (recommended) instead of HDMI cable to connect extender transmitter and receiver to transmit 120 meters;

Detail

D. Insert the IR transmitting line into the IR interface of the transmitter, and insert the IR receiving line into the IR interface of the receiver;

Detail

E. When using, both the transmitter and receiver should be plugged in with external power supply.

Weight

760 g

In the package

1 transmitter, 1 receiver, 2 IR infrared cables, 2 5V power supplies, and 1 manual in both Chinese and English

Before you order

Support video input and output: 24/50/60fs/4K/1080p/1080i/720p/576p/576i/480p/480i;
Support HDMI2.0, backward compatible with HDMI1.4,HDMI1.3;
Support video resolution 3840*2160/60Hz;
Supported audio formats: DTS-HD/Dolby-trueHD/lpm7.1/DTS/Dolby-AC3/DSD;
The transmitter and receiver are used in pairs without setting;
Signal transmission: Use a cat5e or cat6 cable (recommended) instead of HDMI cable to connect the RJ45 port of the receiver and transmitter to transmit 120 meters;
LED display light: when the power supply or extender is working, the relevant LED lights will turn on;
Use AWG26 cable, follow the IEEE-568B standard, signal transmission can reach 120 meters;
Connection mode: point-to-point mode with one sending and one receiving, route allocation mode with one sending and multiple receiving, Cascade mode with one sending and multiple receiving switch;
External power supply: DC5V/2A power adapter
Quick installation, easy operation, plug and play.
