Features. DM90A More temperature measurement functions 10A test lead. X1 AAA ordinary battery. X3 Manual. X1 Packaging color box. X1
- Material
- Plastic
- Maximum display
- 6000
- Range control
- automatic range
- DC voltage
- 60mV / 600mV / 6V / 60V / 600V
- AC voltage
- 60mV / 600mV / 6V / 60V / 600V
- VFC range
- 200V~600V
- Continuous current
- 600uA / 6000uA / 60mA / 600mA / 10A
- AC current
- 600uA / 6000uA / 60mA / 600mA / 10A
- Resistance
- 600ohm / 6Kohm / 60Kohm / 600Kohm / 6Mohm / 60Mohm
- Capacitance
- 9.999nF / 99.99nF / 999.9nF / 9.999uF / 99.99uF / 999.9uF / 9.999mF / 99.99mF
- Frequency (HzV level)
- 99Hz / 999.9Hz / 9.999kHz / 99.99kHz / 999.9kHz / 9.999MHz / 99.99MHz
- V/A frequency range
- 10Hz-10kHz
- Duty cycle
- 10%~95%
- Overload protection
- DC / AC 250V (true effective value)
- Diode test
- Yes
- Buzzer continuity
- Yes
- Automatic power off
- about 15 minutes
- Sampling rate
- 0.4s
- Altitude
- 2000m
- Power supply
- 3 * 1.5V AAA batteries (not included)
- Working temperature
- 0~40C (32~104F), relative humidity 45~80%
- Storage temperature
- -20~60C (-4~140F), relative humidity 45~80%
- Thermocouple measurement temperature
- -20C~1000C / -4F~1832F

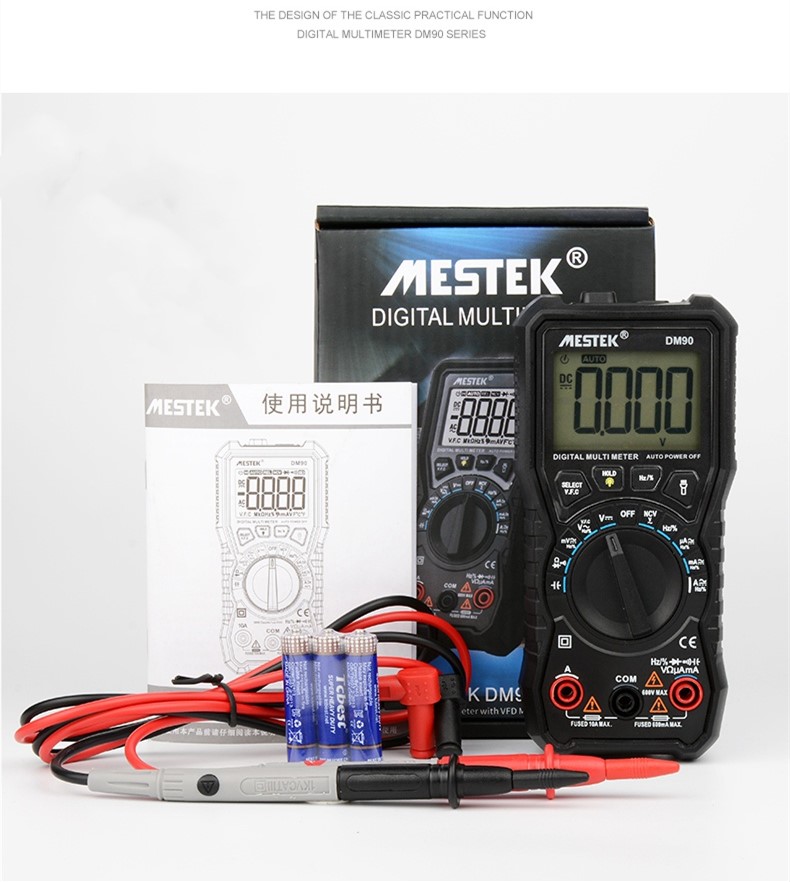

- Packing list
- DM90 multimeter X1
- Weight
- 334 g
