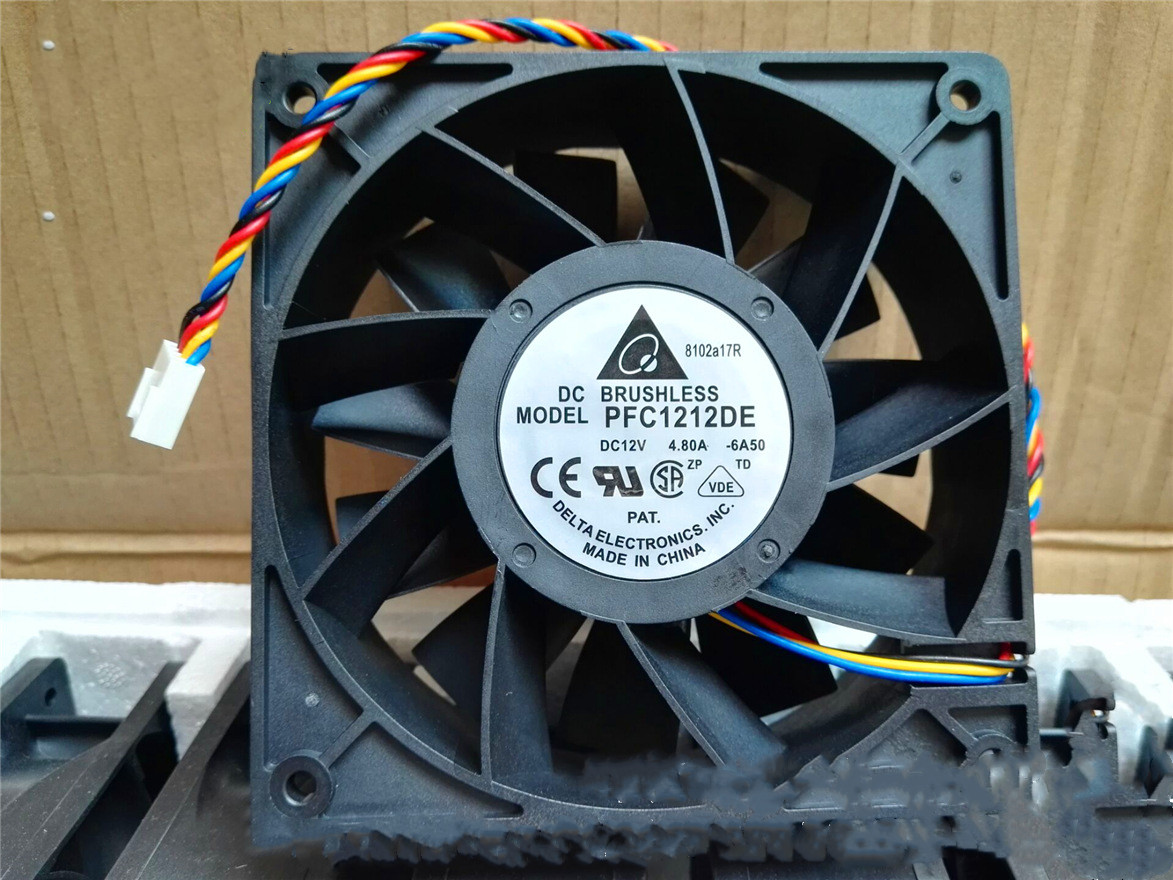

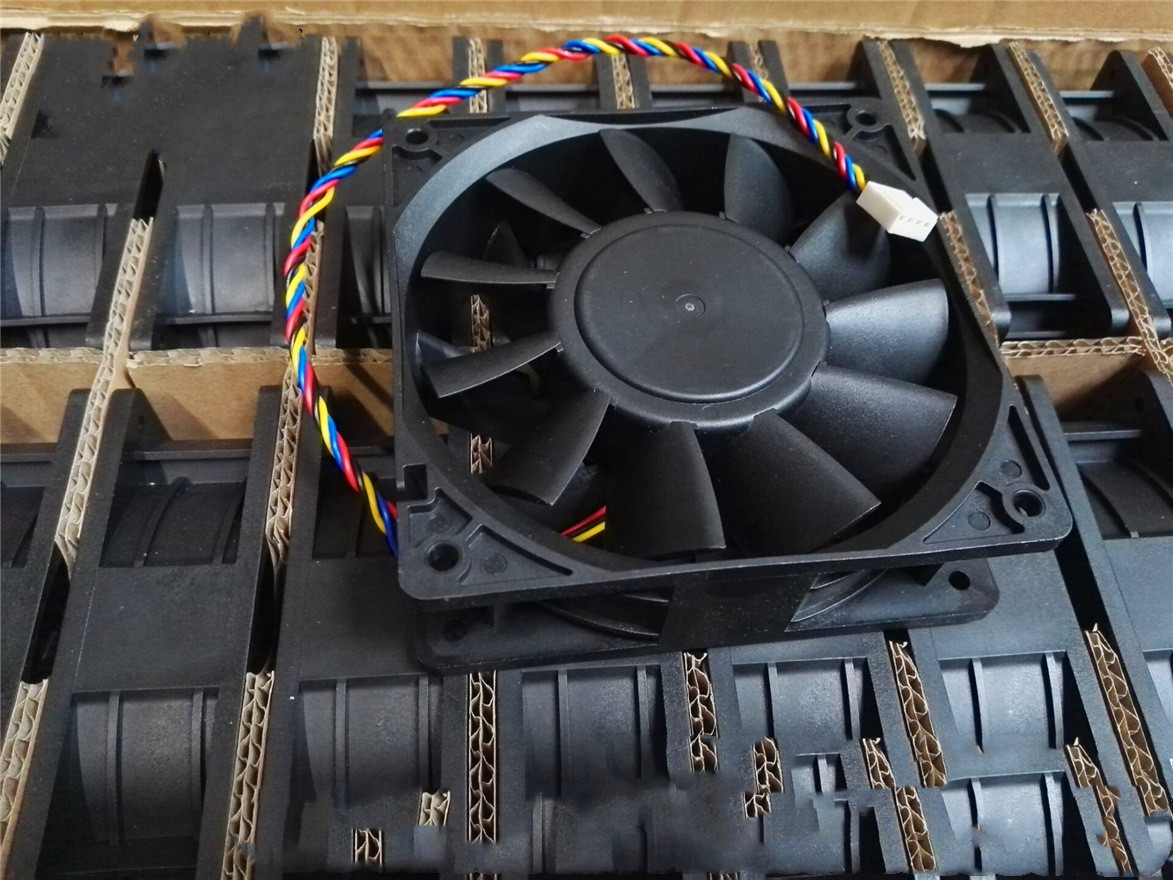

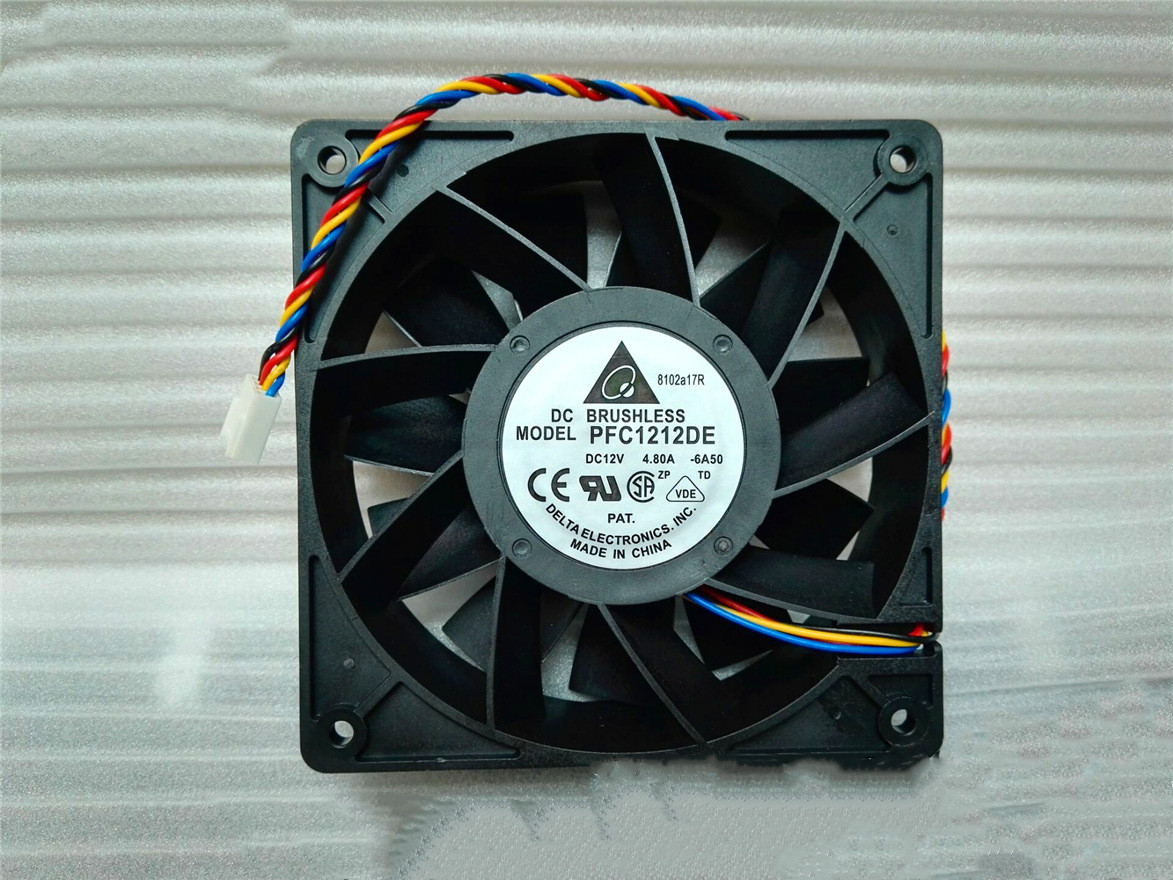

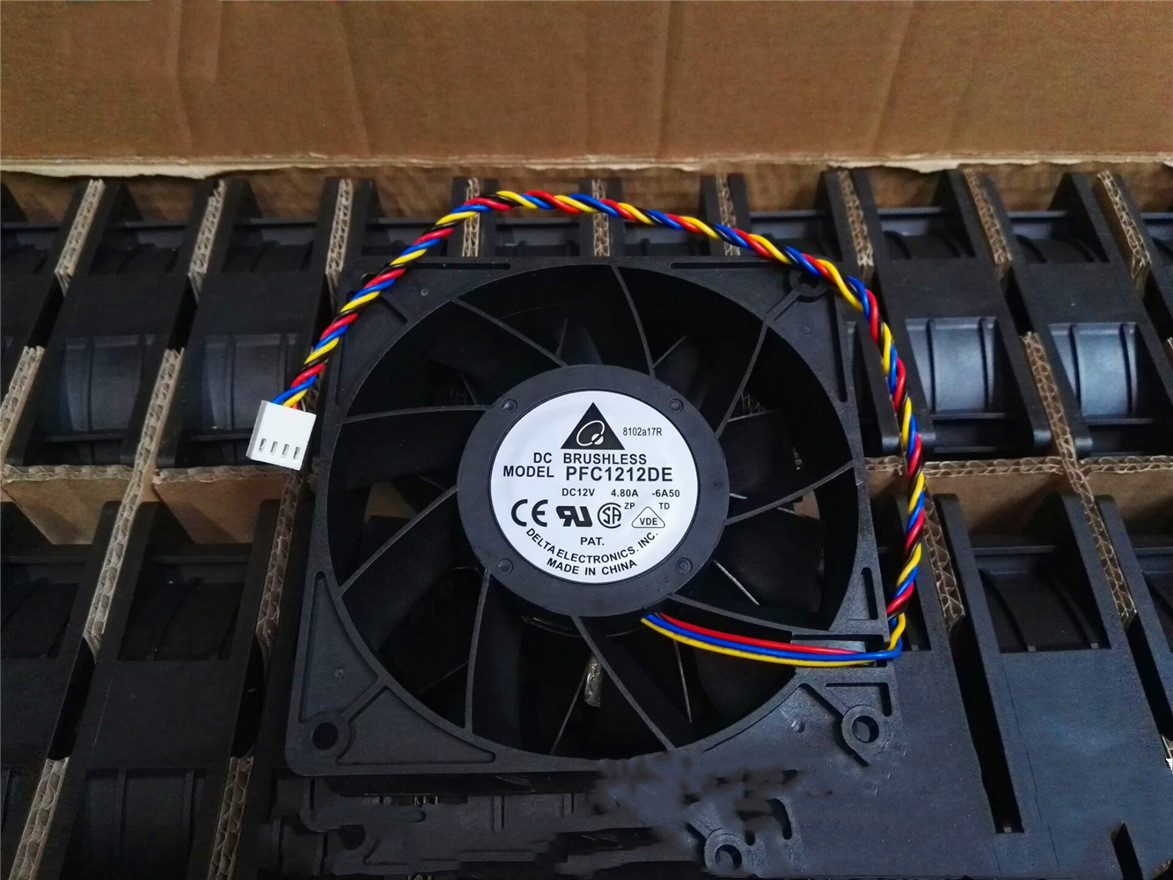

In the case of motherboard. PWM speed regulation, the speed adjusted to below 10% is 1050 rpm, and the fan increases by 405 rpm for each level adjusted from 10% to 100%. Due to the current limitation of the motherboard, it cannot reach 5500 rpm. Directly connected to the power supply 12V positive and negative 2 pole power supply, can reach the maximum speed.
- Material
- plastic
- MODEL
- PFC1212DE
- Size
- 120 × 120 × 38MM
- Voltage
- DC12V
- Current
- nominal 4.8A (12V rated current 2.98A, )
- Air volume
- 252.85CFM (7.16m3 / min)
- Wind pressure
- 1.412 in H2O (351.7 Pa)
- Noise
- 66.5 dB (A) Power: 57.6W
- Speed regulation
- support motherboard PWM speed regulation
- Speed measurement
- support
- Interface
- motherboard 4P
- Line length
- 35cm
- Speed
- 5500 RPM at 12V
- Fan frame
- one-shot injection molding, PBT + 30% glass fiber + VO grade flame retardant;
- Fengye
- injection molding, PBT + 30% glass fiber + VO grade flame retardant;
- Fan rotation direction
- counterclockwise when viewed from the direction of the fan blades;
- Operating temperature
- -10 degrees Celsius to +70 degrees Celsius;
- Storage temperature
- -40 degrees Celsius to +70 degrees Celsius;
- Bearings
- high-precision ball bearings;
- Power supply range
- plus or minus 15% of rated power supply; insulation resistance: greater than 500 megohms;
- Withstand voltage
- sink leakage current 0.5mA 500V / 1 minute;
- Working life
- 80, 000 hours at an ambient temperature of 25 degrees.
- Weight
- 400 g
