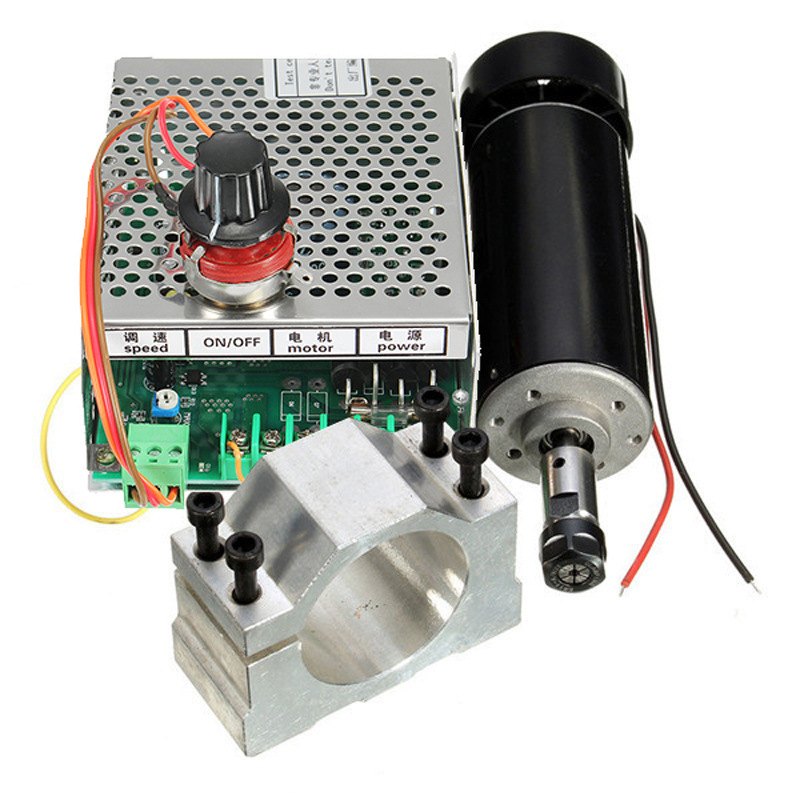

500W Air Cooled Spindle Motor Speed Regulator Fixture PCB Engraving Machine Spindle

Name: 500W Air Cooled Spindle Motor Speed Regulator Fixture PCB Engraving Machine Spindle
Brand: TajBee
SKU: CJJZGJDD00699
Price: 5555 INR

New

Price

₹5,555₹45,62888% off

Color

Selected variation: Electric Machinery

1

Advertisement Floor Lamp w/ 2pcs Glass Lamp Shade Modern Portable Decorative Lamp, White₹6,745

Related products

View all

Product details

Spindle parameters. The diameter of chuck part is 16mm. The radial runout of the spindle is 0.01-0.03 with high accuracy. Can be used for solid wood. PCB engraving drilling and so on. Detailed technical parameters of governor

Material: metal
Working voltage: 12-100vdc
Idle speed: 2000-12000rpm
Power: 500W
Torque: 0.5nm
Insulation resistance: > 2 megohm
Insulation dielectric strength: 400V

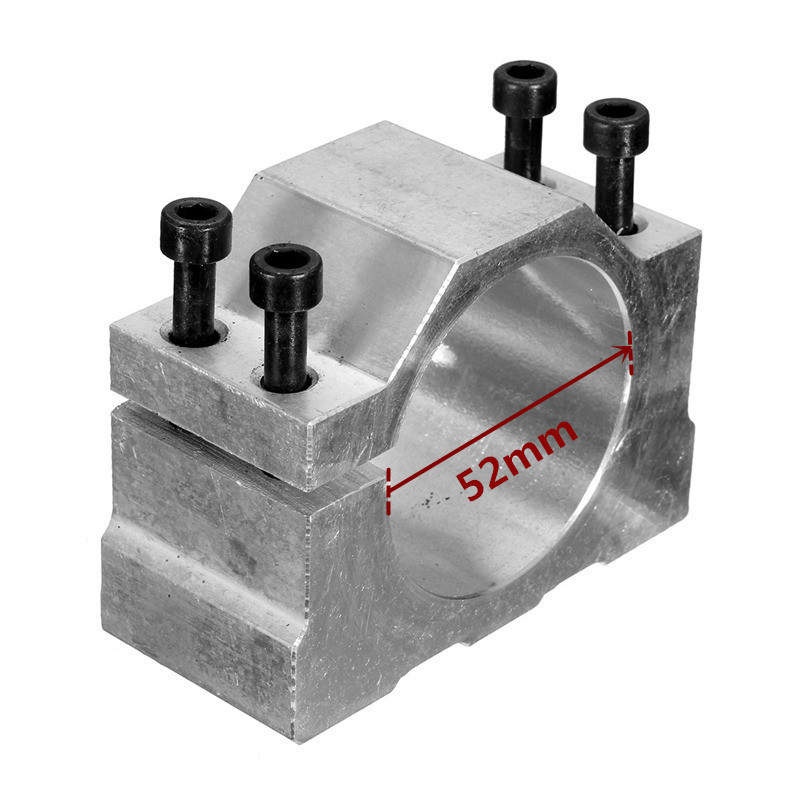

Diameter: 52mm
Chuck part length: 45mm
Total length of motor: About 190mm
Weight: 2000 g

Before you order

Input voltage ac110-ac220v ± 10% global voltage 50 / 60Hz
Current limiting: 6A
Suitable motor power: 50W ~ 500W
Armature output voltage: dc0 ～ 100V adjustable
Overall dimension: length 130mm × width 100mm × height 51mm
Connection mode: terminal type (convenient and fast)
